Features

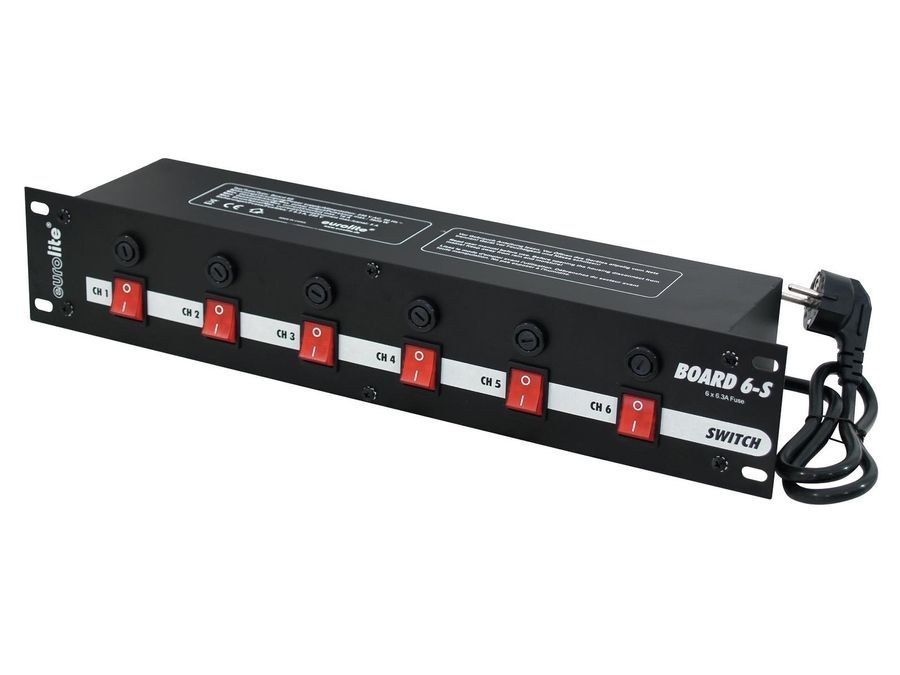

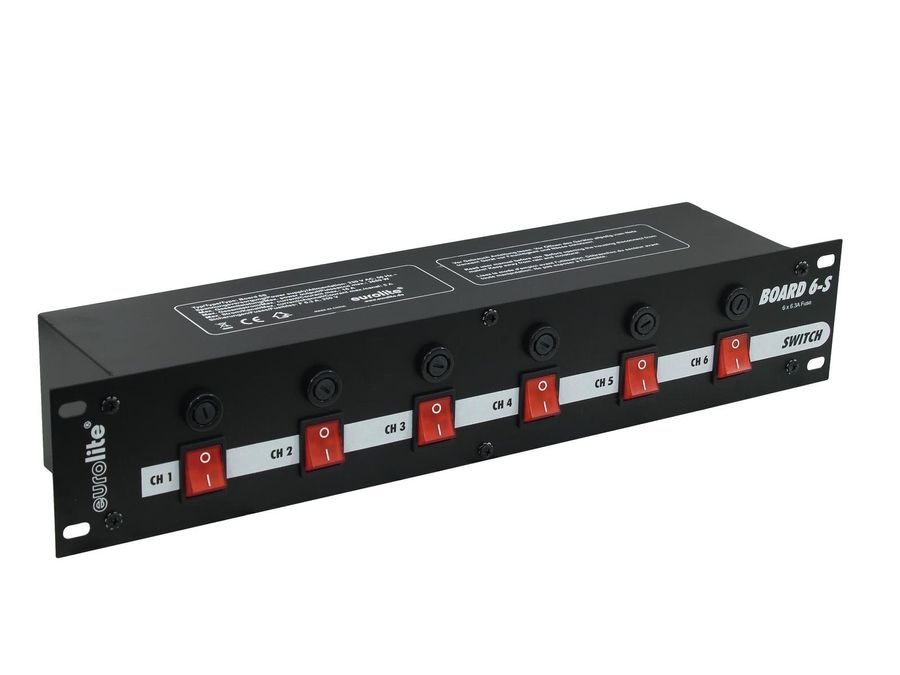

6-fold switching panel for separate switching of 6 safety sockets
- Fully cabled housing with 6 safety sockets
- 6 switches
- Control via on/off switch on device
- With profile rails suitable for 19" units
Package contents
- 1 x device, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 3680 W |
| Output power: | Max. 1150 W per channal |
| Output current: | Max. 5 A per channal |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,8 m |

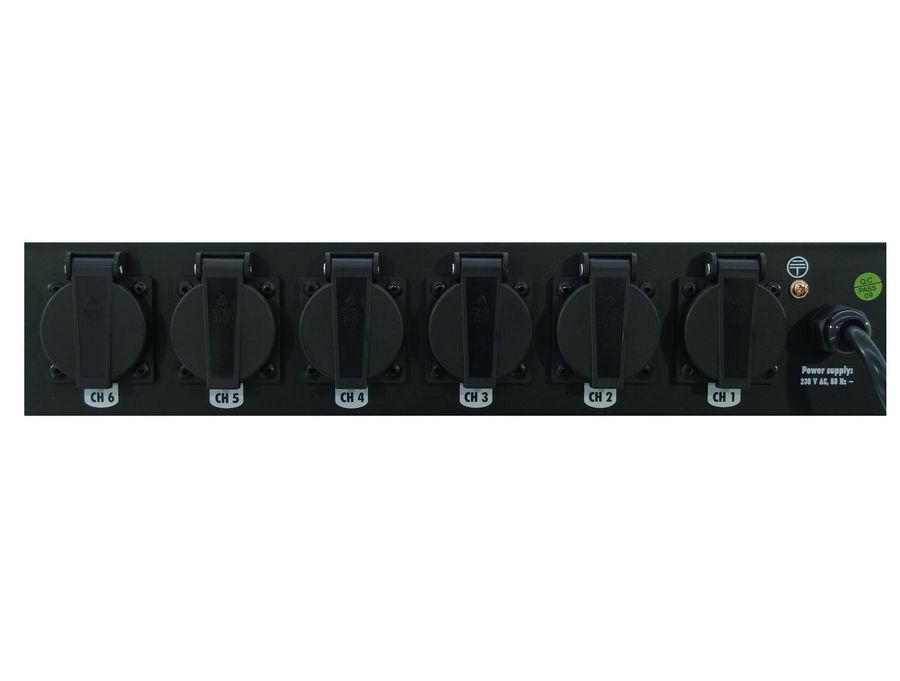

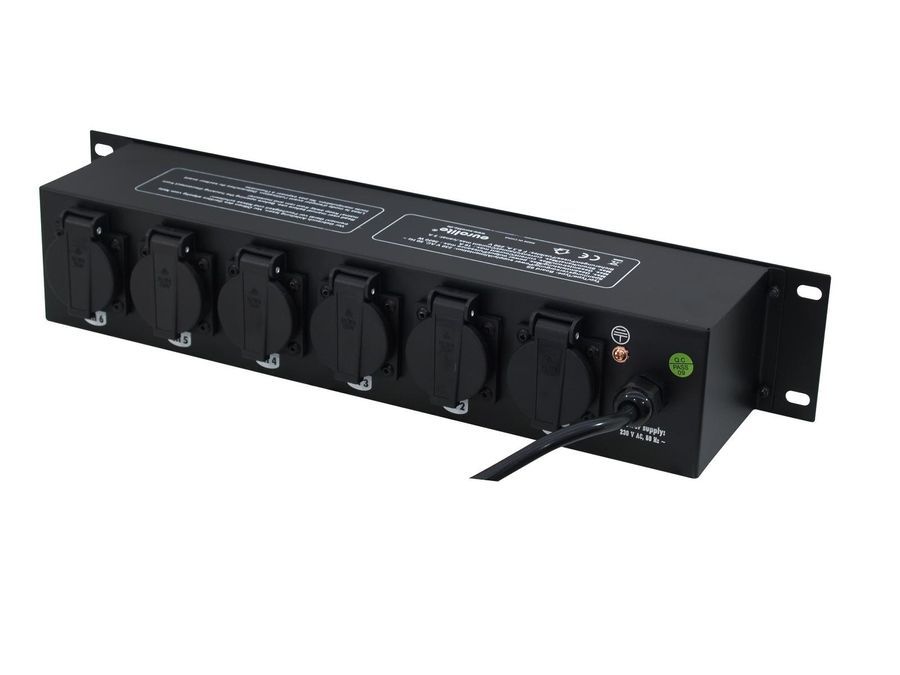

| Power output: | 6 x Safety contact (F), hinged lid mounting version fused |
| Fuse: | 5 x 20 mm, F 6,3 A Fuse replaceable |
| Control: | On/off switch on device |
| Control channels: | 6 |
| Diameter mounting holes: | 4 x Ø5mm |
| Material: | Metal |
| Color: | Black, matte |
| Front panel width: | 19" |
| Mounting height: | Approx. 9 cm (2 U) |
| Mounting depth: | 120 mm |
| Dimensions: | Width: 48,3 cm Depth: 12,5 cm Height: 8,9 cm |
| Weight: | 2,00 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397447439 | 2,20 kg | 51cm x 11cm x 16cm |
| 8 | 4026397447446 | 18,45 kg | 53cm x 33cm x 43,5cm |
