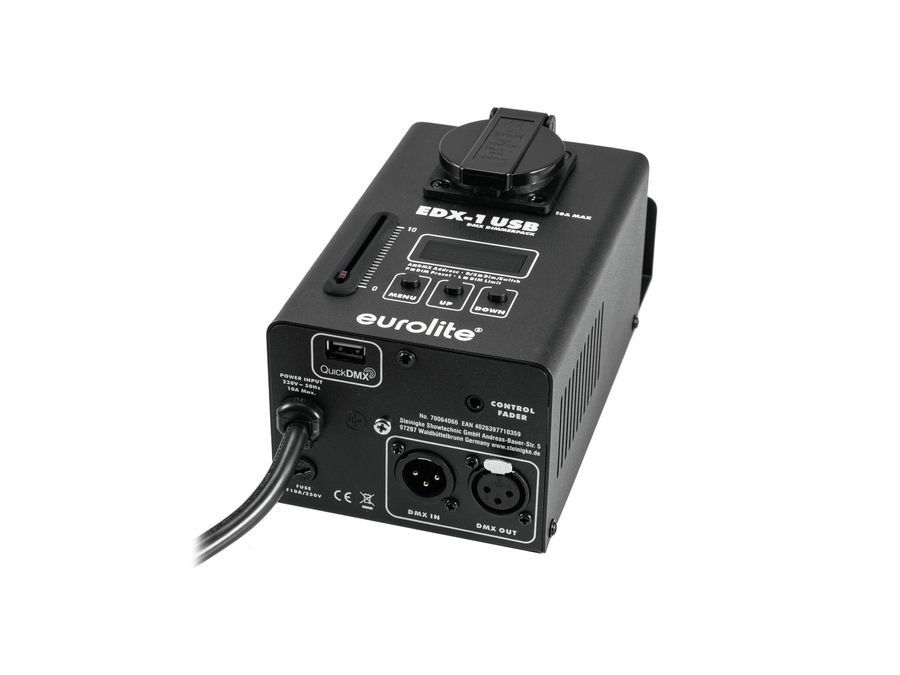

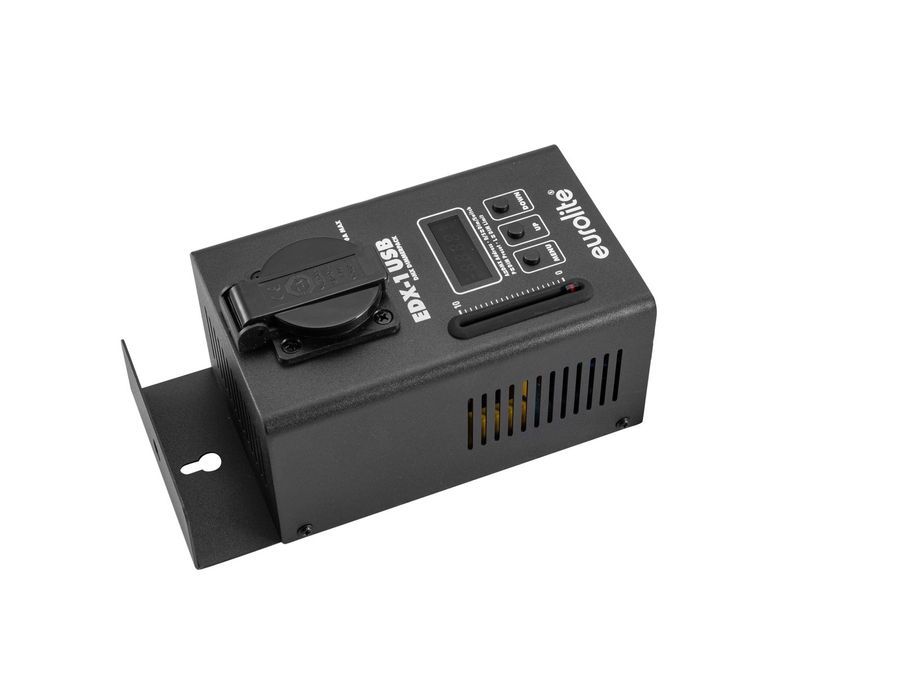

The EDX-1 DMX USB is a compact 1-channel dimmer to control the brightness of spotlights on stage or in clubs. It can be controlled via DMX signal from a light console and supports QuickDMX for wireless control. All menu settings can be made via the built-in control panel with LED display. The housing has threads for fixing the unit to a truss.
Features
1-channel DMX dimmer pack with QuickDMX port
- Selectable dimmer or switch pack operating mode
- Control via QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- 4 digit 7-segment LED display
- For application areas such as: Trade fair and shop fitting; theater; Rental; video and photography
- Silent operation
- Application possibility: Wall mounting
Package contents

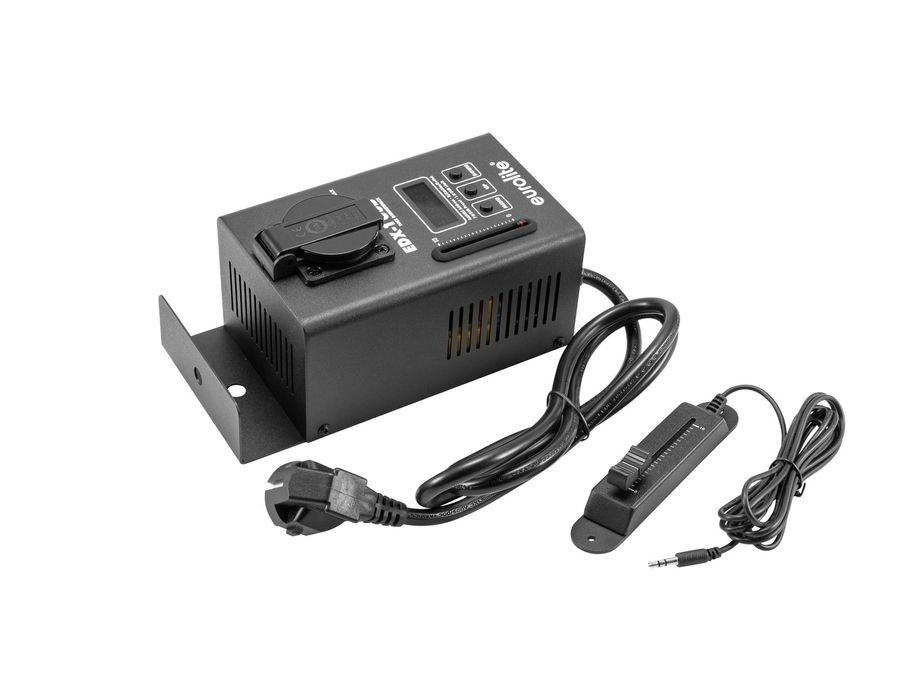

- 1 x device, 1 x user manual, 1 x remote control
Technical specifications
Power supply: | 230 V AC, 50 Hz |
Output power: | Max. 2300 W |
Output current: | Max. 10 A |
Power connection: | Fixed power supply cord with safety plug |
Power output: | 1 x Safety contact (F), hinged lid mounting version |
DMX channels: | 1 |
DMX input: | 3-pin XLR (M) mounting version USB, type A |
DMX output: | 3-pin XLR (F) mounting version |
Control: | QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Control channels: | 1 |
Display type: | 4 digit 7-segment LED display |
Color: | Black |
Dimensions: | Width: 18,2 cm Depth: 9,2 cm Height: 6,5 cm |
Weight: | 1,56 kg |
Noise classification: | Class 0 (no noise at all) |
Packaging units
PU | EAN | Weight | Dimensions |
---|---|---|---|
1 | 4026397710359 | 1,79 kg | 26cm x 17cm x 11,5cm |
9 | 4026397710366 | 16,85 kg | 52cm x 27cm x 38cm |
