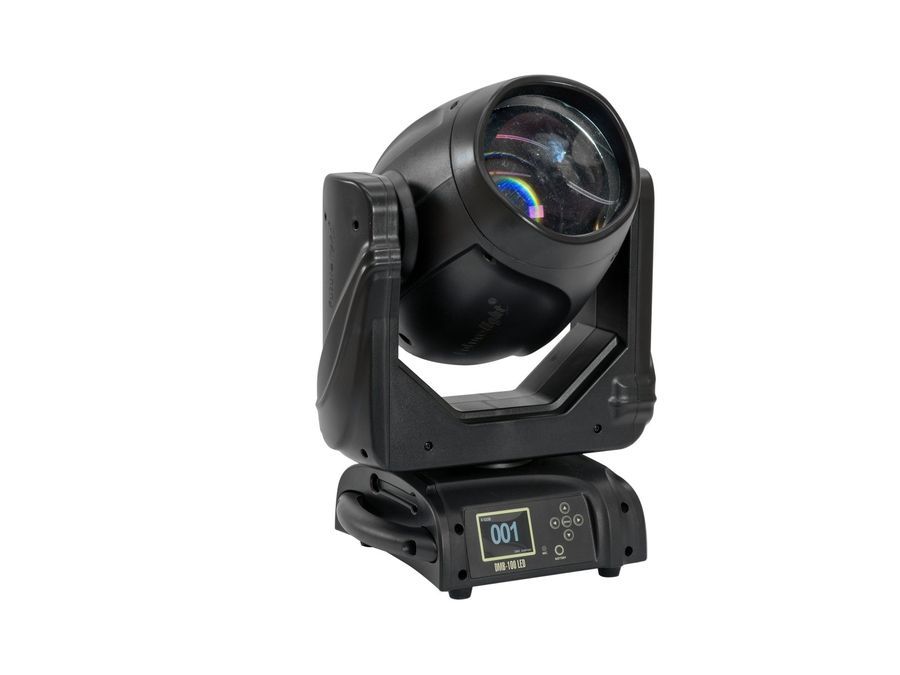

FUTURELIGHT DMB-100 LED Moving Head

Futurelight DMB-100

Beam moving head with efficient 100 W LED

Futurelight's DMB-100 beam-moving head offers an unexpectedly powerful light output with its 100 watts of high efficiency and new optics.

Features

The DMB-100 focuses its light to the extremely narrow beam angle of 1°, creating sharply defined, powerful beams. With 17 gobos, the light can be additionally shaped, not missing the extremely narrow iris gobos. Further optical possibilities are offered by 2 prisms, which split the light into 8 round or 6 linear images. Both prisms can be rotated in both directions and can also be used in combination, resulting in new optical possibilities.

The DMB-100 also has a frost filter that softens its projection. The colors are realized by a color wheel with 15 colors, also split colors between two color glasses can be set.

Connections

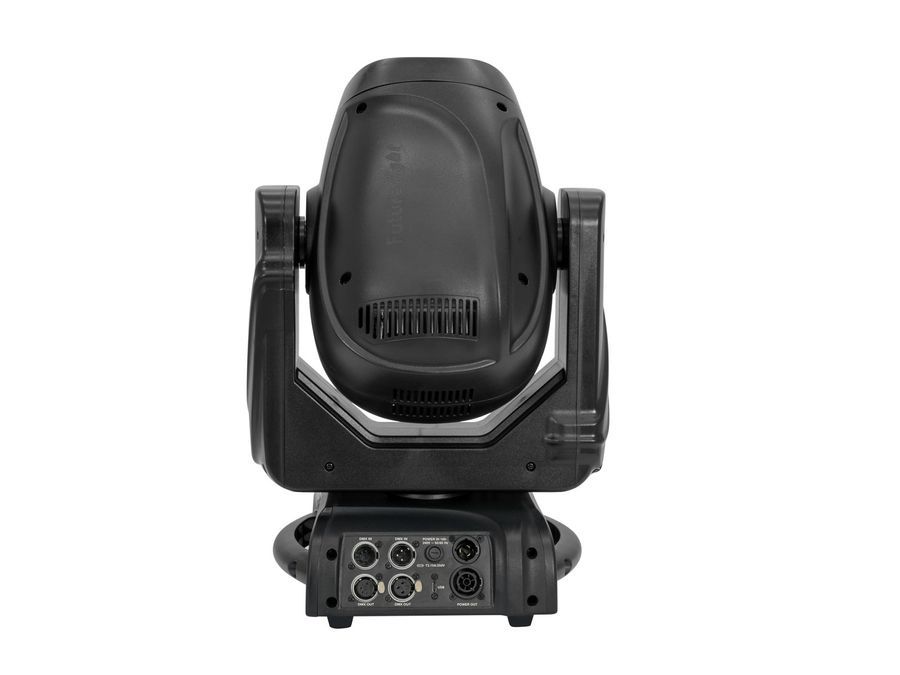

The power connection is made via T-Con, the power can also be looped to other spotlights. The DMX connection is realized with three-pin and five-pin XLR sockets. A USB socket is used for receiving wireless DMX signal: two different USB receivers can be used, which either receive the Eurolite Quick-DMX signal or use LumenRadio's professional CRMX technology and are thus compatible with LumenRadio and Wireless Solution transmitters.

PRO beam moving-head with 100 W COB LED, 1° beam angle, gobo and color wheel, 2 prisms and QuickDMX port

• Bidirectional rotating 6-fold linear prism and 8-facet prism with variable speed, combinable for multi-facet effects
• 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
• Positioning within 540° PAN, 230° TILT
• Auto position correction (feedback)
• Exact positioning (16 bit resolution)
• Gobo wheel with static gobos; Prism 8-fold; Prism 6-fold Linear; frost filter; Focus motor-driven
• Color wheel with 14 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with static gobos, 17 gobos and open
  shake effect
• Integrated show programs
• The device is cooled by temperature-controlled fan
• Control via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; Sound to light via Microphone
• Flicker-free Freq:
• With a beam angle of 1°
• With Omega bracket

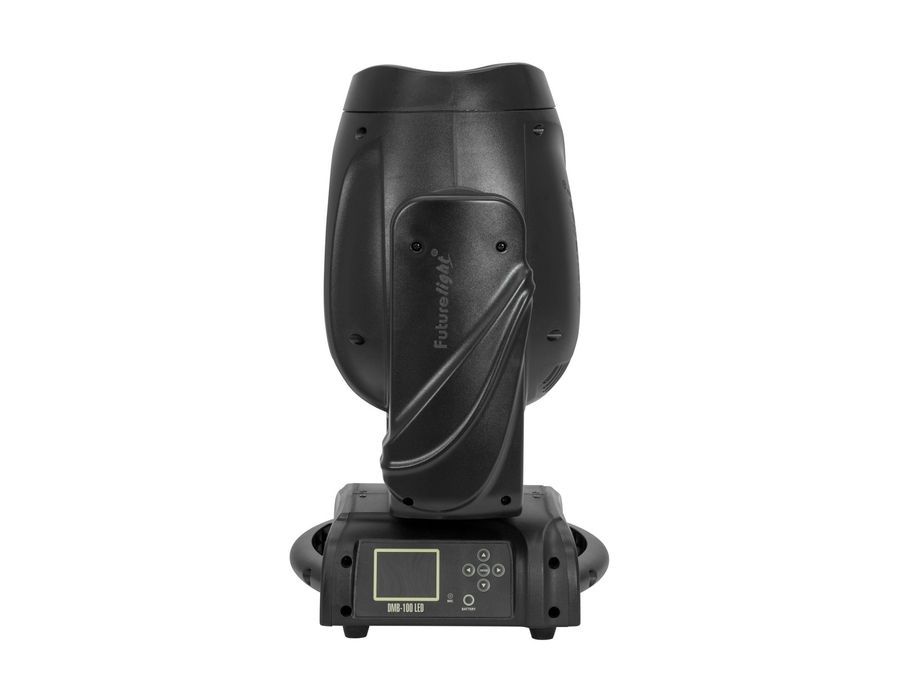

• Multicolor LCD display,
  with battery buffering for easy controlling upgradeable
• Pulse-width modulation variable; dimmer curves with adjustable response; scenes user-definable; Dimmer speed (step response) adjustable
• Strobe effect
• Preprogrammed in Light Captain
• Rubber feet
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; Rental
• Application possibility: Standing; suspended

Package contents

• 1 x moving light, 1 x user manual, 1 x power cord, 1 x xLR cable, 2 x omega bracket
