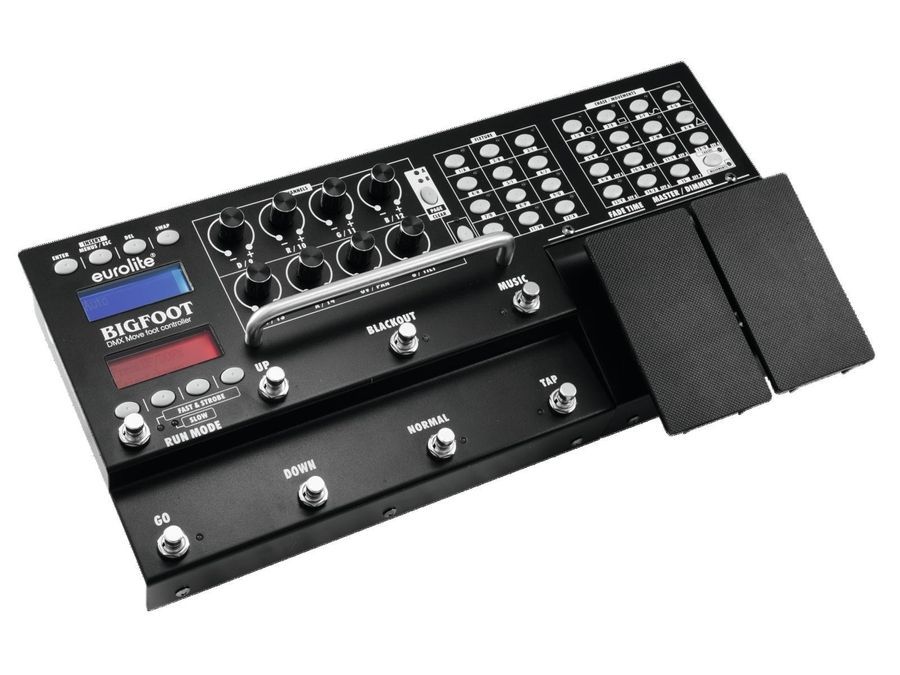

EUROLITE DMX Move Bigfoot Foot Controller 192

DMX Move Bigfoot

Control your light with a foot controller as precisely as never before: With the Bogfoot, you'll work in a more flexible way than with any other device. It is a full-flegded controller – packed in a foot bar. Until now, you could only play scenes which have been programmed on the bar by the producer with a foot controller. Now, you'll be much more flexible: Control a real light show with your feet!

Control movements and colors

Your Bigfoot controls simple PAR spots just as well as moving heads or complex effect devices. Even pre-programmed movements and color effects can be integrated in your show. You can control 12 devices with 16 DMX channels each – and create up to 15 programmable chases.

Displays make control easier for you

Which scene is running at the moment? A quick glaze at the lower display helps you. It is lit up in red and important for live operation. The upper display, which is lit up in blue, is used for programming.

Dim via pedals for the first time

Control brightness and fading via two big pedals on the bar. This way, you can work more intuitively and carefully than with the conventional buttons: More gentle fading is possible.

Discover the intelligent program selection

A big drawback of foot controllers has been the program selection until now. Usually, you had to go through the list of programs – and each program would start immediately. Bigfoot lets you pre-select the program. And the program will then only be started when you press the GO button. So you can select the next program unhurriedly.

Functions freely patchable – make it your way

With your brightness control, you don't neccesarily need to control the whole light set. You can adjust the system just as you like it. Choose only the front light, the blinders or a strobe for example, while the moving heads still draw their bright circles irrespectively of the dimmer. Provide a better overview by naming all chases individually.

Control the speed and more

Let the rhythm of the light movement be controlled by sound or set it via Tap button. Just tap the button twice in the rhythm you want and the system will adapt the beat. Double the speed or slow it down with the simple push of a button, when neccessary.

Kick it – it can take it

A foot controller must be able to stand heavy usage. That's no problem for Bigfoot: All used materials are of extremly durable material. The housing is made of solid metal. The big handle not only makes it easier for you to carry the device, it also protects the potentiometers from too many foot prints.

A full-fledged DMX light controller in a foot bar, with FX generator

• Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
• For 12 fixtures with max. 16 control channels each
• USB port for storing program data
• Quick programming thanks to the integrated FX generator with movement patterns and color effects
• Several effects can be used simultaneously
• Programs can be freely named
• Simply preselect the desired program and trigger it with GO
• Sound control via audio signal or TAP button
• Convenient control of dimmer, fade time and other functions by foot
• 8 encoders on 2 levels for adjusting DMX values
• Blackout function
• Rugged metal housing
• Programmable 15 scenes/chases each with 100 cues
• Can transmit up to 192 DMX channels
• Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
• Monochrome LCD display
• Non-slip pedal housing
• For application areas such as: Stage; mobile djs / entertainer; product presentations and lectures
• Silent operation
• Firmware can be updated

Package contents

• 1 x controller, 1 x user manual, 1 x external mains adapter
